Architecture Best Practices

Architecture Best Practices

Overview​

This guide provides best practices for creating, managing, and maintaining architecture diagrams in Pidima. Following these practices will help you create clear, maintainable, and compliance-ready architecture documentation.

Diagram Creation​

Choose the Right Diagram Type​

Use Case Diagrams

  • ✅ For: User interactions, system boundaries, functional requirements
  • ❌ Not for: Internal implementation details, data structures

Component Diagrams

  • ✅ For: System structure, service relationships, module organization
  • ❌ Not for: Detailed logic flows, user interactions

Sequence Diagrams

  • ✅ For: Process flows, API interactions, time-ordered events
  • ❌ Not for: Static structure, overall system architecture

State Machine Diagrams

  • ✅ For: Object lifecycles, status workflows, state transitions
  • ❌ Not for: Multiple objects interacting, system structure

Class Diagrams

  • ✅ For: Data models, object relationships, entity structures
  • ❌ Not for: Runtime behavior, process flows

Keep Diagrams Focused​

The 7±2 Rule Human working memory can handle 5-9 items effectively. Keep diagrams in this range:

  • Ideal: 5-7 main elements per diagram
  • Acceptable: Up to 10-12 elements
  • Too complex: 15+ elements (split into multiple diagrams)

Example - Good:

@startuml
' 6 main components - easy to understand
[API Gateway]
[Auth Service]
[User Service]
[Order Service]
[Database]
[Cache]
@enduml

Example - Too Complex:

@startuml
' 20+ components - overwhelming
[API Gateway]
[Auth Service]
[User Service]
[Order Service]
[Product Service]
[Inventory Service]
[Payment Service]
[Shipping Service]
[Notification Service]
[Analytics Service]
' ... and 10 more
@enduml

Solution: Split into multiple focused diagrams:

  • "System Context" - High level overview
  • "Frontend Services" - User-facing services
  • "Backend Services" - Core business logic
  • "Data Layer" - Databases and storage
  • "Integration Layer" - External systems

Use Consistent Naming​

Be Consistent Across Diagrams

✅ Good:
   - Diagram 1: "User Service"
   - Diagram 2: "User Service"
   - Diagram 3: "User Service"

❌ Bad:
   - Diagram 1: "User Service"
   - Diagram 2: "UserService"
   - Diagram 3: "user-service"
   - Diagram 4: "Users API"

Match Your Actual System Use the same names as in your:

  • Codebase (service names, class names)
  • Infrastructure (deployed service names)
  • Documentation (technical specifications)
  • Team vocabulary (what everyone calls it)

Naming Conventions:

✅ Good naming:
   - "Authentication Service"
   - "Order Processing Module"
   - "PostgreSQL Database"
   - "Redis Cache"

❌ Vague naming:
   - "Service 1"
   - "The module that does stuff"
   - "DB"
   - "Cache thing"

Add Meaningful Descriptions​

Diagram Name

✅ Good: "User Authentication and Session Management Flow"
✅ Good: "Payment Processing Component Architecture"
✅ Good: "Order State Machine with Cancellation Handling"

❌ Bad: "Sequence Diagram 1"
❌ Bad: "Architecture"
❌ Bad: "System Design"

Assumptions Field Document important context:

✅ Good assumptions:
1. All services communicate over HTTPS with mTLS
2. Database uses read replicas for scaling (1 primary, 2 replicas)
3. API Gateway handles rate limiting (1000 req/min per user)
4. Session timeout is 30 minutes
5. System designed for 10,000 concurrent users

❌ Poor assumptions:
1. Things work
2. Database is used
3. It's secure

Organization and Structure​

Organize by Hierarchy​

Level 1: System Context

  • High-level system overview
  • External actors and systems
  • Major subsystems
  • System boundaries

Level 2: Subsystem Architecture

  • Subsystem components
  • Internal services
  • Service interactions
  • Data flows

Level 3: Detailed Design

  • Detailed sequence flows
  • Class structures
  • State machines
  • API interactions

Example Organization:

Project: Medical Device Software
├── Level 1 - System
│   ├── System Context Diagram
│   └── High-Level Components
├── Level 2 - Software Architecture
│   ├── Frontend Components
│   ├── Backend Services
│   └── Data Architecture
└── Level 3 - Detailed Design
    ├── Authentication Sequence
    ├── Data Processing Flow
    ├── State Machine Diagrams
    └── Class Diagrams

Use Naming Patterns​

Recommended Pattern:

[Type]-[Feature/Component]-[Perspective]

Examples:
- "UC-UserAuth-Login" (Use Case, User Authentication, Login)
- "Comp-PaymentSystem-Overview" (Component, Payment System, Overview)
- "Seq-Checkout-HappyPath" (Sequence, Checkout, Happy Path)
- "Seq-Checkout-ErrorHandling" (Sequence, Checkout, Error Handling)
- "State-Order-Lifecycle" (State, Order, Lifecycle)
- "Class-UserManagement-DataModel" (Class, User Management, Data Model)

Benefits:

  • Easy to find related diagrams
  • Clear purpose from name alone
  • Natural grouping in lists
  • Searchable by type or feature

Create Diagram Sets​

Pattern: Multiple views of same feature

For complex features, create a set of complementary diagrams:

Example: Payment Processing

  1. UC-Payment-Overview (Use Case) - User perspective
  2. Comp-Payment-Services (Component) - Service structure
  3. Seq-Payment-Success (Sequence) - Successful payment flow
  4. Seq-Payment-Failure (Sequence) - Error handling
  5. State-Payment-Lifecycle (State) - Payment states
  6. Class-Payment-DataModel (Class) - Payment entities

Benefits:

  • Comprehensive documentation
  • Different stakeholder views
  • Complete understanding
  • Traceability across perspectives

PlantUML Code Quality​

Format for Readability​

Use whitespace and comments:

@startuml
' ========================================
' User Authentication Flow
' ========================================

' Define actors
actor User
actor Admin

' Define system components
participant "Web App" as Web
participant "API Gateway" as API
participant "Auth Service" as Auth
database "User Database" as DB

' ========================================
' Main authentication flow
' ========================================
User -> Web: Enter credentials
Web -> API: POST /auth/login
API -> Auth: Validate credentials
Auth -> DB: Query user
DB --> Auth: User data
Auth --> API: JWT token
API --> Web: Success response
Web --> User: Redirect to dashboard

@enduml

Use Skinparam for Consistency​

Create a standard style:

@startuml
' Standard Pidima diagram styling
skinparam backgroundColor #FFFFFF
skinparam shadowing false
skinparam ArrowColor #2C3E50
skinparam ArrowThickness 2
skinparam componentStyle rectangle
skinparam rectangle {
  BackgroundColor #ECF0F1
  BorderColor #34495E
  FontColor #2C3E50
}

' Your diagram content
[API Gateway] --> [Auth Service]
@enduml

Benefits:

  • Professional appearance
  • Brand consistency
  • Improved readability
  • Easier maintenance

Avoid Common Pitfalls​

❌ Overcomplicated Diagrams

' TOO COMPLEX - 30+ elements with intricate relationships
@startuml
[Component1] --> [Component2]
[Component2] --> [Component3]
[Component3] --> [Component4]
' ... 25 more components ...
@enduml

✅ Split into focused diagrams

' GOOD - Focused frontend layer
@startuml
package "Frontend Layer" {
  [Web App]
  [Mobile App]
  [Admin Portal]
}
[Web App] --> [API Gateway]
[Mobile App] --> [API Gateway]
[Admin Portal] --> [API Gateway]
@enduml

' Separate diagram for backend
@startuml
package "Backend Layer" {
  [API Gateway]
  [Auth Service]
  [Business Service]
}
' ...
@enduml

❌ Inconsistent Naming

@startuml
[User Service] --> [order-service]
[order-service] --> [paymentAPI]
[paymentAPI] --> [Shipping_Module]
@enduml

✅ Consistent Naming

@startuml
[User Service] --> [Order Service]
[Order Service] --> [Payment Service]
[Payment Service] --> [Shipping Service]
@enduml

Traceability Practices​

Best Practice: Link diagrams to requirements as you create them

Workflow:

  1. Create or generate diagram
  2. Immediately link to relevant requirements
  3. Verify links are correct
  4. Document link rationale in assumptions

Why:

  • Context is fresh
  • Prevents orphaned diagrams
  • Maintains compliance
  • Easier than bulk linking later

✅ Good linking:

Requirement: "User shall authenticate with username and password"
Linked to:
- Sequence diagram showing authentication flow
- Component diagram showing auth service
- State machine showing session states

Requirement: "System shall use PostgreSQL database"
Linked to:
- Component diagram showing database in architecture
- Class diagram showing data model

❌ Over-linking:

Requirement: "User shall authenticate with username and password"
Linked to:
- Every diagram in the system (30+ diagrams)
- Diagrams that barely mention authentication
- Completely unrelated diagrams

Regular reviews:

  • Weekly: Review diagrams created this week
  • Monthly: Audit traceability coverage
  • Quarterly: Deep review of all links
  • Before audits: Comprehensive verification

Quality checks:

  • ✅ All requirements have architecture representation
  • ✅ All diagrams are linked to requirements
  • ✅ Links are still relevant after changes
  • ✅ No circular or redundant linking

Team Collaboration​

Establish Standards​

Create a team guide:

# Architecture Diagram Standards

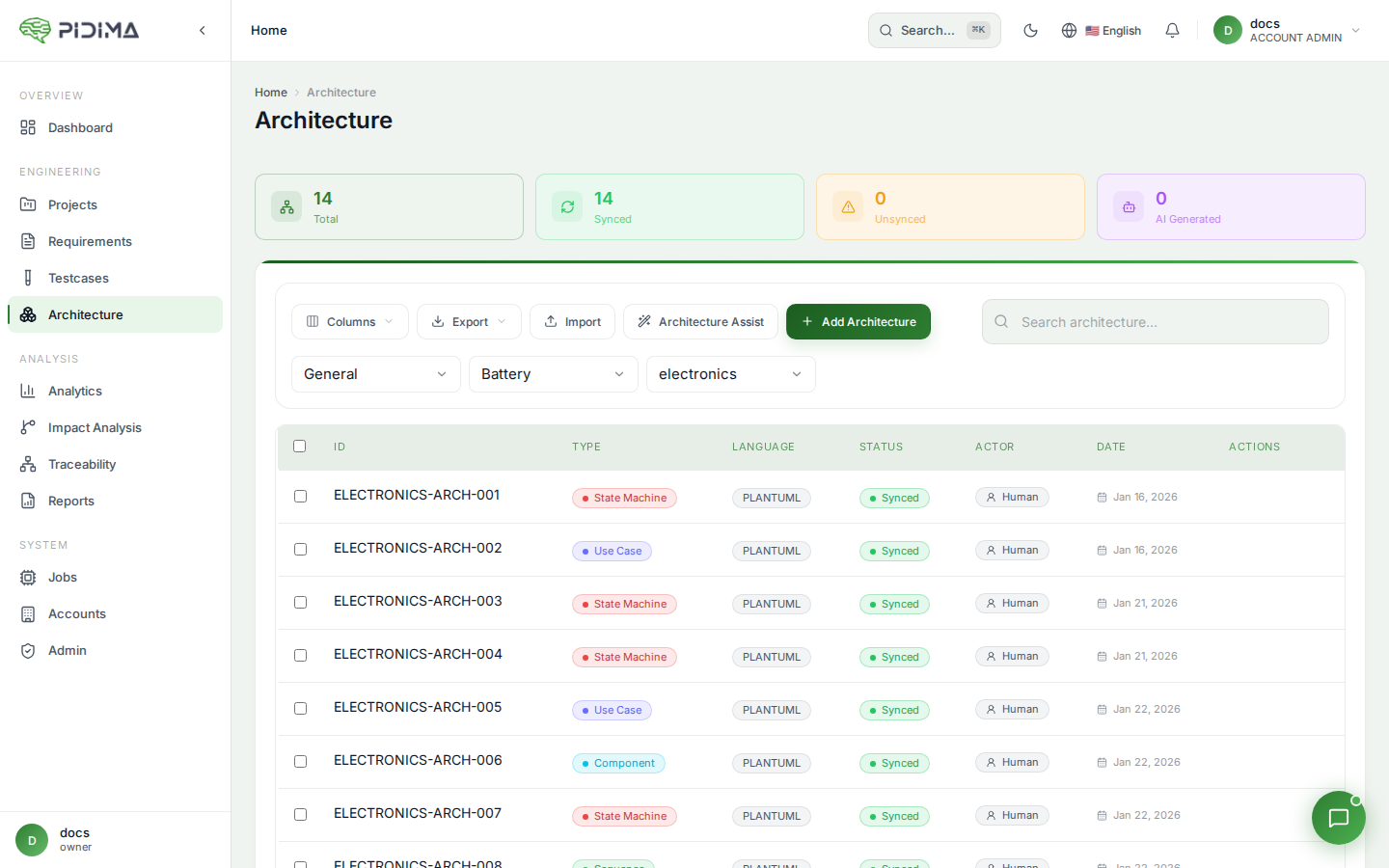

![Architecture Best Practices](/img/screenshots/architecture-view.png)


## Naming Convention
[Type]-[Feature]-[Aspect]

## Diagram Types to Use
- Use Case: User interactions
- Component: Service structure
- Sequence: Process flows
- State: Lifecycle management
- Class: Data models

## Styling
- Use standard skinparam (see template)
- Background: white
- Font: Default
- Colors: Company brand colors

## Required Fields
- Descriptive name
- At least 1 assumption
- Linked to min. 1 requirement

## Review Process
- Self-review before save
- Peer review for Level 1-2 diagrams
- Architect review for major changes

Code Review Architecture​

Review checklist:

  • ☐ Diagram name is descriptive
  • ☐ Appropriate diagram type chosen
  • ☐ Elements are clearly labeled
  • ☐ Relationships are accurate
  • ☐ Not too complex (< 10 elements)
  • ☐ Linked to requirements
  • ☐ Assumptions documented
  • ☐ PlantUML code is clean
  • ☐ Follows team standards
  • ☐ Renders correctly

Version Control Mindset​

Track changes:

  • Document why diagram changed
  • Link to requirements that drove change
  • Note what was updated
  • Keep audit trail

Example change log:

v1: Initial architecture based on REQ-001 to REQ-005
v2: Added error handling flow per REQ-023
v3: Updated component names to match deployed services
v4: Simplified per architecture review feedback

Compliance and Audits​

Audit Readiness​

Before an audit:

  1. Run coverage reports

    • Requirements without architecture
    • Orphaned diagrams
    • Coverage by requirement type

  2. Fix gaps

    • Create missing diagrams
    • Link orphaned diagrams
    • Remove obsolete diagrams

  3. Verify traceability

    • Check bidirectional links
    • Ensure accuracy
    • Document rationale

  4. Prepare exports

    • Generate traceability matrices
    • Export diagrams as PDFs
    • Create summary reports

Documentation for Auditors​

Include in audit package:

  1. Traceability Matrix

    • Requirements to Architecture
    • Architecture to Test Cases
    • Coverage metrics

  2. Architecture Catalog

    • List of all diagrams
    • Diagram types and purposes
    • Links to requirements

  3. Methodology Document

    • How architecture is created
    • Review and approval process
    • Maintenance procedures
    • Traceability management

  4. Change Log

    • Architecture changes
    • Reason for changes
    • Requirements driving changes

Common Audit Questions​

Q: How do you ensure architecture implements requirements? A: We maintain traceability links in Pidima. Each requirement is linked to architecture diagrams showing implementation. We run monthly coverage reports to identify gaps.

Q: How do you handle architecture changes? A: All changes are tracked with rationale documented in assumptions. Updated diagrams are linked to requirements that drove the change. Version history maintained.

Q: Can you show complete traceability? A: Yes, we export traceability matrices from Pidima showing: Requirements → Architecture → Tests. Coverage reports show 95%+ traceability coverage.

Maintenance​

Keep Diagrams Current​

Update triggers:

  • Requirement changes
  • System changes
  • Architecture decisions
  • Team feedback
  • Audit findings

Update process:

  1. Identify affected diagrams
  2. Update PlantUML code
  3. Regenerate image
  4. Update assumptions
  5. Verify links still accurate
  6. Document change

Regular Reviews​

Weekly: New diagrams

  • Quick review of this week's diagrams
  • Verify links created
  • Check naming and standards

Monthly: Coverage check

  • Run coverage reports
  • Identify gaps
  • Plan diagram creation

Quarterly: Deep review

  • Audit all diagrams
  • Remove obsolete diagrams
  • Update outdated diagrams
  • Verify traceability accuracy

Annually: Architecture refresh

  • Major review of all architecture
  • Update to reflect current system
  • Archive old versions
  • Train new team members

Archive Obsolete Diagrams​

Don't delete - archive:

  • Export diagram before deleting
  • Save to archive folder (outside Pidima)
  • Document why archived
  • Keep for historical reference

When to archive:

  • Feature no longer exists
  • Architecture completely changed
  • Diagram replaced by newer version
  • System decommissioned

Tips for Success​

Start Simple​

Phase 1: High-level diagrams

  • System context
  • Major components
  • Key flows

Phase 2: Subsystem detail

  • Service architecture
  • Data flows
  • Integration points

Phase 3: Detailed design

  • Sequence diagrams
  • Class diagrams
  • State machines

Don't try to create everything at once!

Use AI Wisely​

AI is great for:

  • ✅ Initial diagram drafts
  • ✅ Boilerplate structure
  • ✅ Discovering relationships
  • ✅ Saving time on tedious work

Human review needed for:

  • ⚠️ Accuracy verification
  • ⚠️ Naming consistency
  • ⚠️ Completeness check
  • ⚠️ Compliance validation

Workflow:

  1. Generate with AI
  2. Review carefully
  3. Refine and adjust
  4. Verify traceability
  5. Document assumptions

Learn PlantUML​

Resources:

Practice:

  • Start with simple diagrams
  • Study examples
  • Experiment with styling
  • Build a personal library of templates

Build a Template Library​

Create reusable templates:

Template: API Sequence

@startuml
' API Interaction Template
actor Client
participant "API Gateway" as Gateway
participant "Service" as Service
database Database

Client -> Gateway: Request
Gateway -> Service: Forward request
Service -> Database: Query
Database --> Service: Data
Service --> Gateway: Response
Gateway --> Client: Response
@enduml

Template: Microservices Component

@startuml
' Microservices Architecture Template
package "Frontend" {
  [Web App]
}
package "Backend" {
  [API Gateway]
  [Service A]
  [Service B]
}
database "Data Layer" {
  [Database]
  [Cache]
}

[Web App] --> [API Gateway]
[API Gateway] --> [Service A]
[API Gateway] --> [Service B]
[Service A] --> [Database]
[Service B] --> [Cache]
@enduml

Next Steps​
